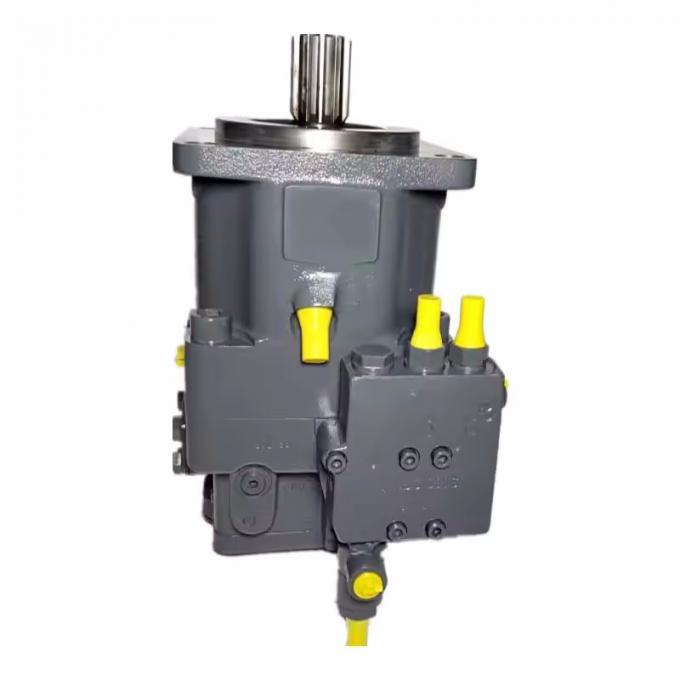

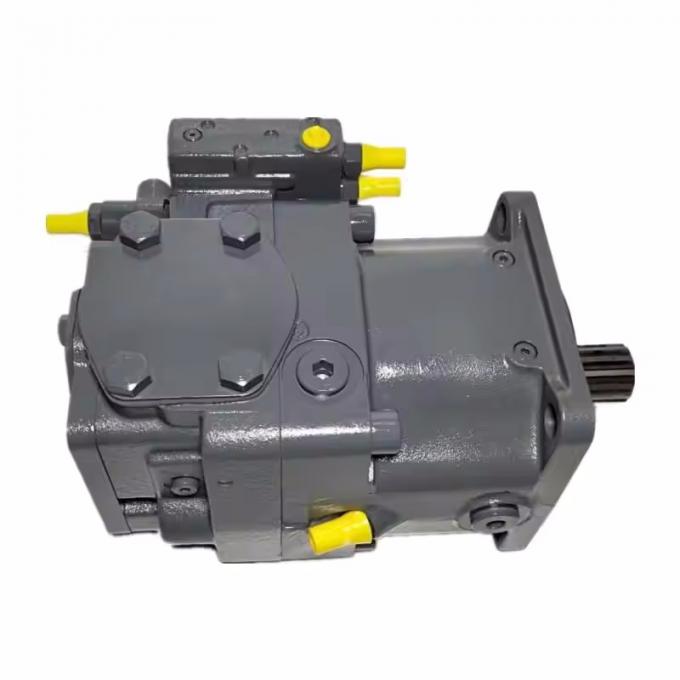

Concrete Pump TruckA11VO60/75/95/130/145/190 Swash Plate Axial Piston Variable Pump

Precautions for Using Plunger Pumps

• ​Combination gaskets must be installed at the oil inlet and outlet of the pump. After the pipe joint is connected, apply a layer of grease on the outside to prevent air from entering.
• Before use, the oil return hole must be filled with oil; otherwise, the pump will be worn out instantly due to cavitation.
• After filling oil and connecting all pipes, idle the pump for 10 minutes before applying pressure. This can discharge the residual air in the pump and pipes.
• A filter screen or filter element must not be installed at the oil inlet of the plunger pump; otherwise, it will cause insufficient oil suction of the plunger pump and result in damage. The filter screen can be installed in the oil tank or at the oil outlet

Support and Services:

• Standby Replacement Procurement: You can directly provide us with the brand and model (if you don't know the model, you can directly take photos of the equipment and send them to us).
• Engineering Design Procurement: Please provide the required data parameters such as dimensions, displacement, required pressure, etc., and the type of equipment it will be applied to (our excellent technical team will calculate the suitable model for you).
• Maintenance Service: Please provide the name of the mechanical equipment, the model of the oil pump or motor, and the fault phenomenon (in order to better solve the problem for you, please take photos of the faulty equipment that needs repair and send them to us).
